FIAlyzer-1000 Series
The FIAlyzer-1000 flow injection analyzer is a reliable and efficient solution for laboratories looking to measure a wide range of parameters in drinking water, wastewater, soil and plant extracts, and other liquid samples. Flow injection analysis offers a simple, reliable, and fast way of analyzing samples in the lab.
Some of the more common analytes include ortho-phosphates (OP), total phosphorus (TP), nitrate (NO3), nitrate + nitrite (NOx), nitrite (NO2), total nitrogen (TN), total Kjeldahl nitrogen (TKN), and ammonia (NH3). For a complete list of analytes, please see our Method List.
Our methods are compliant with US EPA, APHA (Standard Methods), ASTM, and ISO reference methods.
-
The FIAlyzer-1000 has a modular design, whereby the instruments can be combined into a 1-4 channel system with a combination of methods. This allows laboratories that need to analyze one set of samples for several analytes to do so in one run; conversely, a lab that is focused on a single parameter or prefers a dedicated system for each parameter can select a single-channel option.
The system is controlled by FIAsoft, our state-of-the-art control software, which is written by our in-house software team and receives regular updates. FIAsoft allows for easy sample import, data export, and LIMS integration, and is compatible with Windows 10/11.
FIAlyzer-1000 or FIAlyzer-FLEX
FIAlab offers two flow injection analyzers, the 1000 and the FLEX. Each is well-suited for certain applications. The FIAlyzer-1000 is compact, robust, and simple. It is an excellent instrument for the following situations:
each channel will be dedicated to one or two methods and not a lot of switchover will be needed (switchovers between similar methods are still simple, for example NOx to NO2 or NH3 to TKN)
in-line methods are not needed – these are only available for the FLEX instrument
The FIAlyzer-1000 is a great choice for many environmental applications, and is almost always the best choice for agricultural laboratories. If you would like to learn about another option that FIAlab has available, we recommend you also check out our FIAlyzer-FLEX.
-

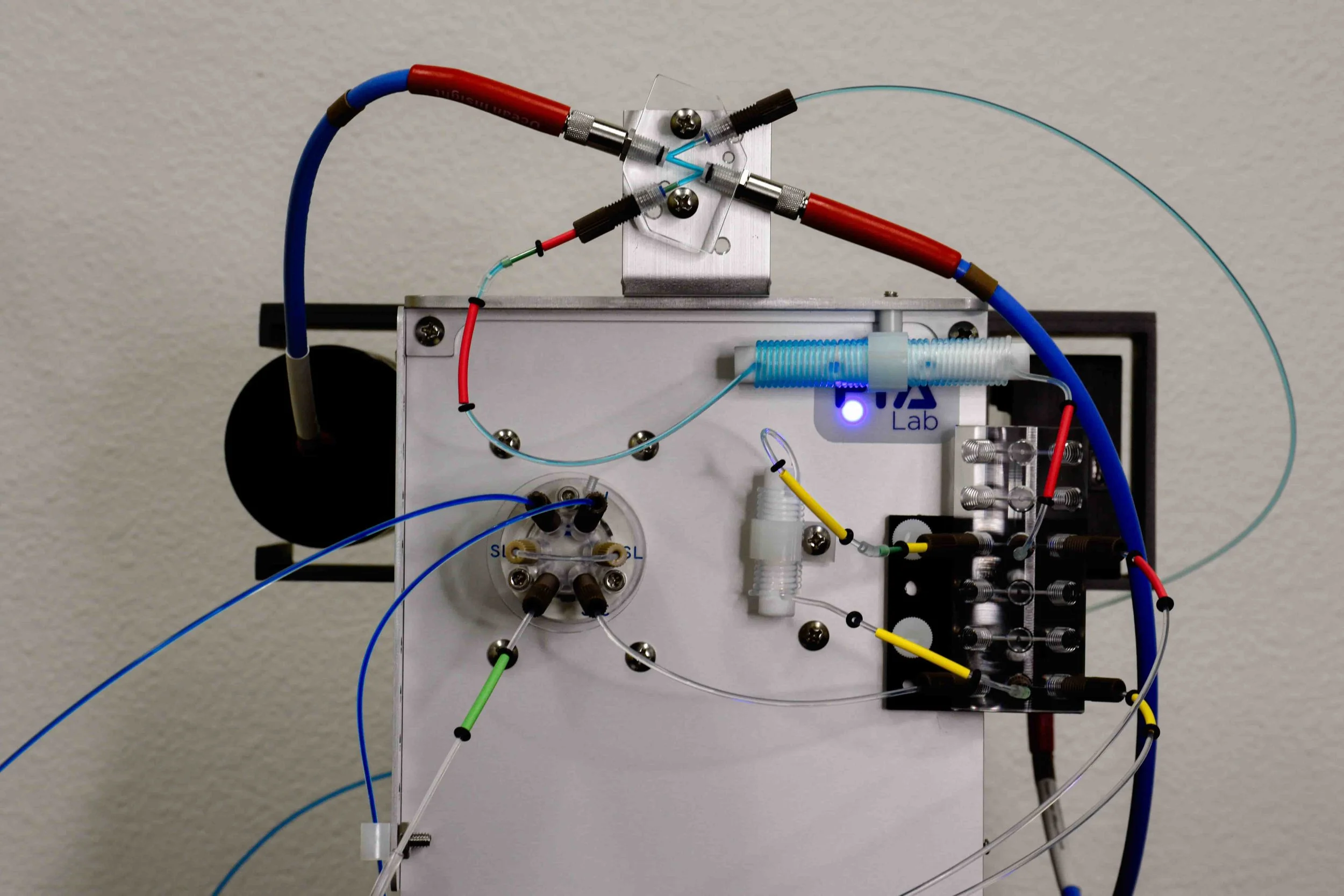

The complete FIAlyzer-1000 system includes an autosampler and control software, and each channel includes a built-in peristaltic pump, injection valve, light source, and full-array spectrometer. A heater can be added when required. Additional options include an autodilutor, manual distillation unit, or block digestor.
The robust design, reliability, and high sample throughput make it the best choice for agricultural and environmental laboratories performing routine assays; some advantages of using the FIAlyzer-1000 series includes:
Full automation of flow injection analysis, including automatic pre-dilution and post-dilution and re-running of over-range samples
Software-controlled pump is built-in
Small footprint – each channel measures less than 1 square foot (30 square centimeters)
Rapid throughput – can analyze up to 240 samples / hour, per channel
Software is written in-house by FIAlab and receives regular feature updates
Fast calibration - under 5 min
Low reagent consumption
-
Analyzer
Type: Flow Injection Analyzer, single channel, expandable to multiple channels
Enclosure material: Aluminum (gray powder-coated / anodized)
Peristaltic Pump
Type: 6-channel peristaltic, individual pressure plates
Materials: Aluminum, stainless steel
Tubing type: 2-stop PVC Peristaltic Pump Tubing
Valve
Type: 6-port; Two Position Injection Valve
Wetted materials: Plexiglas, Valcon E2 (proprietary reinforced PTFE composite)
Port type: Flat-bottom ¼-28
Relay output
Voltage: 24 V
Current: Max 4mA
Dimensions
Height: 13 in (33 cm)
Width: 6 in (15 cm)
Depth: 9.8 in (25 cm)
Weight: 17.5 lb (7.9 kg)
Communication
Input: USB
Control options: FIAsoft software
Power requirements
Voltage: 24 Vdc
Current: Max. 2.5 A
-
-
![]()
2-channel setup (NOx + NH3)
-
![]()

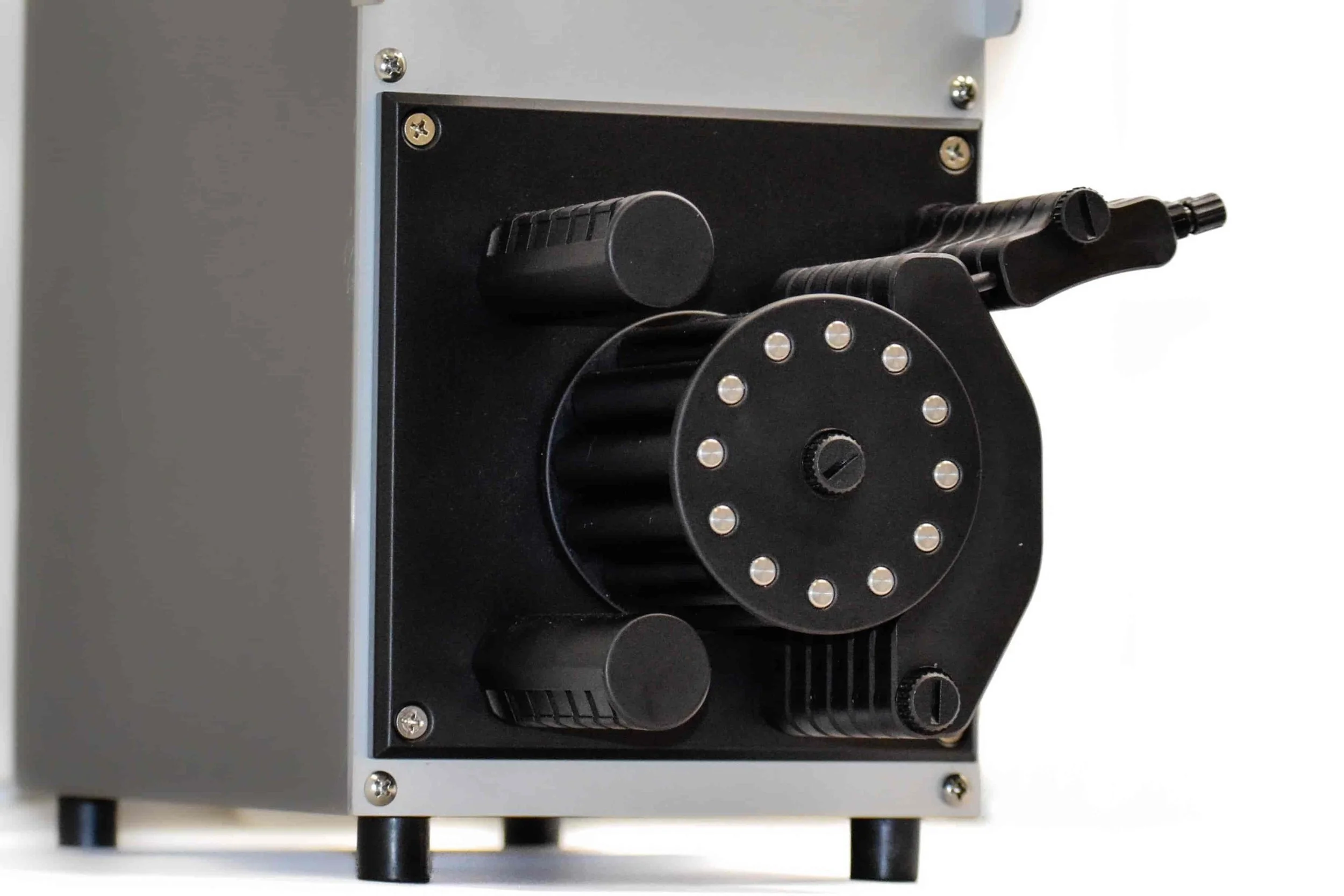

High Precision Peristaltic Pump
-
![]()
Full FIAlyzer setup
-
![]()
FIA for Education - Analytical Chemistry Fundamentals
-
![]()
EPA FIAlab100 (NH3/TKN)
Product Highlights
Fast Throughput
The FIAlyzer-1000 is the fastest flow injection analyzer on the market. Analyze up to 250 samples per hour with this instrument.
Small Footprint
Save room in your laboratory. This instrument requires less than one square-foot of bench space.
Spectrometer Capabilities
Our analyzers utilize spectrometers to perform their detection. A spectrometer will broaden your sample concentration range, reduce noise, and collect more data.
Training & Installation
Instrument come with free training and on-site installation. Our technicians teach you the ins and outs, run your samples, and ensure that the instrument accomplishes your analytical goals.
Methods
-
Gas diffusion salicylate method: EPA 350.1 and SM 4500-NH3 H. Can also be used for TKN analysis: EPA 351.2 and SM 4500-Norg D
OPA Ammonia and TKN Method: EPA FIAlab100
Phenolate Ammonia method: EPA 350.1 and SM 4500-NH3 H.
-
Griess method with Cadmium reduction. EPA 353.2 and SM 4500-NO3 F.
Total Nitrogen via persulfate (Dennis Jones) digestions also available.
-
Molybdenum blue method: EPA 365.1 and SM 4500-P F / SM 4500-P G
Total Phosphorus via persulfate (Dennis Jones) digestion also available: EPA 365.1 and SM 4500-P H
Total Kjeldahl Phosphate (TKP) also available: EPA 365.4
-
Pyridine barbiturate method. EPA 335.4 and EPA OIA-1677.
Amperometric method:
Available cyanide determination by OIA-1677-09 (EPA), 4500-CN-I (Standard Methods), 14403 (ISO) or 6888-09 (ASTM). [CN-W-4-1]
Free cyanide determination by 7237-15a (ASTM). [CN-W-4-3]
Total cyanide (fully automated) determination by D7511−12 (ASTM). This setup would require the addition of an in-line digestion module. [CN-W-4-2]
Total cyanide (semi-automated) determination in post-distillation samples by D7284 (ASTM). In this case, samples are first processed by manual batch distillation. [CN-W-4-1]
-
Most Standard Methods and EPA methods are compatible with our instruments.
Software
Software is just as important as hardware. In order to provide complete analytical solutions, we understand that we have to deliver quality hardware and polished software. Our instruments operate on the newest, most intuitive FIA software ever. This program will change the way you use flow injection.
Analyzer
Choose the analyzer that suits your application best. Is it single channel, multi-channel or a combination?
Computer
We supply computers at cost. We will install all relevant software and hardware. Or, use your own. Up to you!
Autosampler
We can supply an autosampler at retail value, or you can use one you already own. FIAsoft is compatible with all standard autosamplers.
Service Contract
Purchase a Preventative Maintenance Plan with us and receive unlimited consultation, extended warranty, and annual maintenance visits.
