Autodilutor

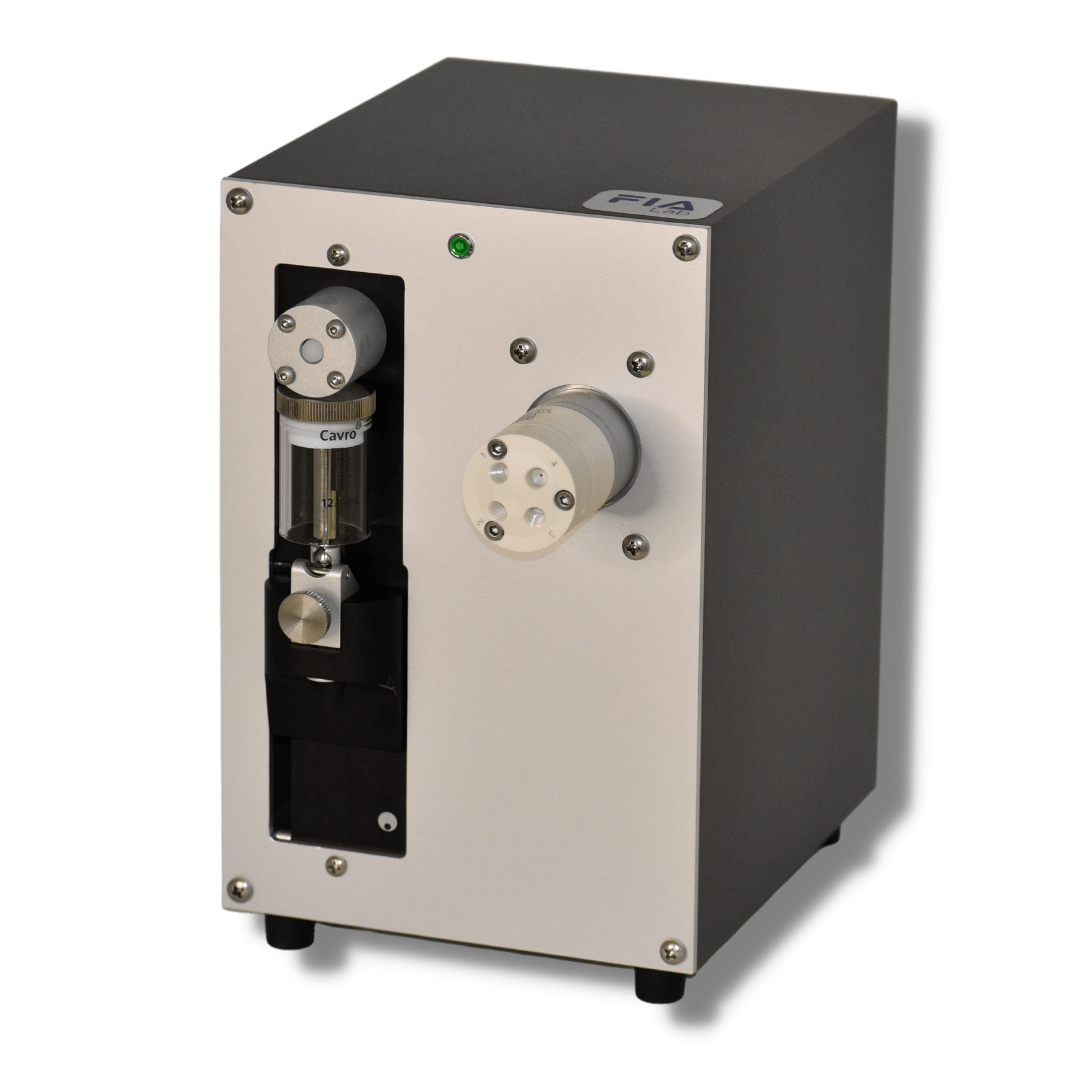

FIAlab’s AD-100 autodilutor is an automated unit for performing in-line dilution when combined with a FIAlyzer-1000 Series or FIAlyzer-FLEX Series set-up. Calibration standards can be diluted from a stock solution, and samples can be diluted prior to a run and after the run. It utilizes a 12.5 mL syringe pump and 4-port switching valve; and has a dilution range of 2-100.
The AD-100 connects the autosampler to the analyzer set-up and can be added to any new or existing FIAlyzer set-up. It is entirely software-controlled.
-
Instrument
Type: Autodilutor
Enclosure material: Aluminum (gray power-coated, anodized)
Syringe Pump
Type: High-precision Syringe Pump
Wetted Materials: Glass, Teflon®, PCTFE
Stroke Volume: 12.5 mL
Port Type: Flat-bottom ¼-28
Valve
Type: 4-port, Two-position Switching Valve
Wetted Materials: PPS, Valcon E2
Port Type: Flat-bottom ¼-28
Performance
Dilution Range: 2-100
Precision: ≤5% RSD (n=10)
Accuracy: ≤10%
Compatibility
Autosampler: CETAC ASX-260/280 and 520/560
Dimensions
Height: 9 in (23 cm)
Width: 6 in (15 cm)
Depth: 7 in (18 cm)
Weight: 10 lb (4.6 kg)
Power Requirements
Voltage: 24 VDC
Current: 2.5 A
Part #795255 AD-100 Autodilutor
Contact sales@flowinjection.com for more information.
-
Request a Quote
If you would like more information or a quote of our products, please email: sales@flowinjection.com
Or, call us at 206-258-2290. One of our expert sales staff will be sure to help you.
